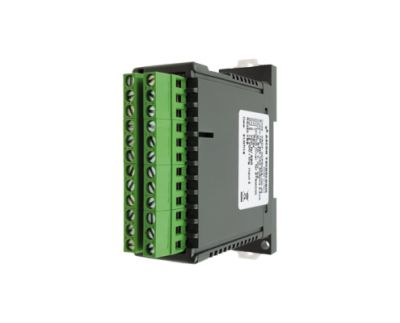

Main features
Process inputs:
1 temperature probe input:
- Thermocouples: J, K, R, S,T
- PTC KTY81-121 (990 Ω @ 25 °C)
- NTC 103AT-2 (10KΩ @ 25 °C)
- RTD: Pt100
- Voltage (V): 0..1 V, 0/1...5 V , 0/2...10 V
- Voltage (mV): 0...50 mV, 0...60 mV, 12 ...60 mV
- Current (mA): 0/4...20 mA
- Custom linearisation and IR probes (J.K type)
Overall accuracy: ± (0.5 % span ± 1 digit @25 °C); Tc S: ± (1 % span ± 1 digit @ 25 °C)
1 digital input free voltage
Process outputs:
Up to 4 digital outputs:
OUT1: RELAY SPDT, 8A
OUT2: RELAY SPDT, 8A
OUT3/OUT4: RELAY SPST-NO, 5A and SSR Drive
OUT5 (Note1):SSR Drive 0...5Vdc, ±20%, 30 mA max
Installation:
Mounting method: panel mount
Case dimensions: 35 x 88 mm, h: 88 mm
