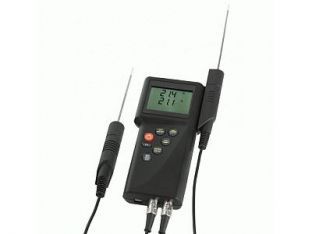

Handheld measuring instrument - P710 / P715 - Dostmann

Handheld measuring instrument - P710 / P715 - Dostmann


The economically priced solution for precision measurements on a wide range of use. By using the thermocouple type J, K, L, N, T for a range of -200 °C to +1370 °C these instruments can be used for many applications.
Areas of application: industrial furnace control, taking surface measurements or differential temperature on heating systems.

• USB interface
• Optional DE-Graph Windows Software for graphic and tabular documentation
• High measuring accuracy
• Integrated calibration function for simple compensationof sensor tolerances
• Physical 1-point, 2-point or 3-point calibration function
• Measuring channels are freely assignable
• Recording maximum, minimum, hold and average values
• Integrated sensor holder for one hand operation
• Mains operation possible
• Simultaneous display of two measured values
• Differential temperature display

P750 temperature-humidity instrument - Dostmann

P750 Temperature-humidity instrument - Dostmann

High accurate 1-channel hand­held ther­mo­meter, max. accuracy + - 0,03°C (PT100).

• USB interface
• Optional DE-Graph Windows Software for graphic andtabular documentation
• High measuring accuracy
• Integrated calibration function for simple compensationof sensor tolerances
• Physical 1-point, 2-point or 3-point calibration function
• Measuring channels are freely assignable
• Recording maximum, minimum, hold and average values
• Integrated sensor holder for one hand operation
• Mains operation possible
• Simultaneous display of two measured values
• Differential temperature display

P755 multi-function instrument - Dostmann

P755 multi-function instrument for temperature-humidity-airflow-pressure - Dostmann

High accrate 2-channel hand­held ther­mo­meter. Max. accuracy + - 0,03°C (PT100).

• USB interface
• Optional DE-Graph Windows Software for graphic and tabular documentation
• High measuring accuracy
• Integrated calibration function for simple compensation of sensor tolerances
• Physical 1-point, 2-point or 3-point calibration function
• Measuring channels are freely assignable
• Recording maximum, minimum, hold and average values
• Integrated sensor holder for one hand operation
• Mains operation possible
• Simultaneous display of two measured values
• Differential temperature display

P755-LOG multi-function instrument - Dostmann

P755-LOG multi-function instrument for temperature-humidity-airflow-pressure - Dostmann

High preci­sion data logger for temper­ature (±0,03), relative humidity, dew point, air flow with memory for 6.000 meas­ure­ments. The instru­ment is designed for applic­a­tion of the quality assur­ance, e.g. testing climatic cham­bers, calib­ra­tion ther­mo­stats, oven...or ther­mo­elec­trical processes. For the battery-powered instru­ment we provide a separate power supply as an option. The meas­uring interval is adjustable between 1 second and 30 minutes. By using our preci­sion Pt100-probes with sensor calib­ra­tion code you will reach the on page 12 descripted system accuracy. The P755-LOG meas­uring system is the perfect standard to test subor­din­ated instru­ments or systems. For trace­ab­ility we recom­mend to order those instru­ments with a calib­ra­tion certi­ficate.

• USB interface
• Optional DE-Graph Windows Software for graphic and tabular documentation
• High measuring accuracy
• Integrated calibration function for simple compensation of sensor tolerances
• Physical 1-point, 2-point or 3-point calibration function
• Measuring channels are freely assignable
• Recording maximum, minimum, hold and average values
• Integrated sensor holder for one hand operation
• Mains operation possible
• Simultaneous display of two measured values
• Differential temperature display

P790 Multi-functional Handheld - Dostmann

P790 Multi-functional Handheld - Dostmann

• 2-channel instrument for Pt100, thermocouple and relative humidity
• Automatic probe detection
• Simultaneous display of two measured values or differential measurement
• Recording maximum, minimum, hold and average values (average over user selectable time)
• Integrated calibration function (up to 14 adjustment points)
• Manufacturers test certificate included
• Data logger function for up to 6000 measurements

P4000 Profi-thermometer - Dostmann

P4000 Profi-thermometer, 1-channel, for PT100 probes - Dostmann

Partic­u­larly handy and robust temper­ature instru­ment, for Pt100-probes. The high preci­sion is exep­tion­ally in this price segment.

Product features P4000:

• 4-wire technology for Pt100
• MAX, MIN-Hold-AVG-function
• Calibration function
• Integrated sensor holder one hand operation
• USB-interface
• Storage of 20 measuring values

P4000W Watertight Profi-thermometer - Dostmann

P4000W Watertight Profi-thermometer, 1-channel, for PT100 probes - Dostmann

Partic­u­larly handy and robust temper­ture instru­ment, for Pt100-probes. The high preci­sion is exep­tion­ally in this price segment.

Product features P4000W:

• 4-wire technology for Pt100
• MAX, MIN-Hold-AVG-function
• Calibration function
• Integrated sensor holder one hand operation
• USB-interface
• Storing of 20 measuring values
• Instrument IP54 watertight, connector IP65 watertight

P4005 Profi-thermometer - Dostmann

P4005 Profi-thermometer, 2-channel, for PT100 probes - Dostmann

Partic­u­larly handy and robust temper­ture instru­ment, for Pt100-probes. The high preci­sion is exep­tion­ally in this price segment.

Product feature P4005:

• 4-wire technology for Pt100
• MAX, MIN-Hold-AVG-function
• Calibration function
• Integrated sensor holder one hand operation
• USB-interface
• Storage of 20 measuring values

P4005W Watertight Profi-thermometer - Dostmann

P4005W Watertight Profi-thermometer, 2-channel, for PT100 probes - Dostmann

Partic­u­larly handy and robust temper­ture instru­ment, for Pt100-probes. The high preci­sion is exep­tion­ally in this price segment.

Product features P4005W:

• 4-wire technology for Pt100
• MAX, MIN-Hold-AVG-function
• Calibration function
• Integrated sensor holder one hand operation
• USB-interface
• Storing of 20 measuring values
• Instrument IP54 watertight, connector IP65 watertight

P4010 Profi Thermometer - Dostmann

P4010 Profi Thermometer, 1-channel, Thermocouple Type-K - Dostmann

Partic­u­larly handy and robust temper­ture instru­ment, for thermo-couple-probes. The high preci­sion is exep­tion­ally in this price segment.

Product feature P4010:

• MAX, MIN-Hold-AVG function
• 1-point-CAL-function
• USB-interface
• 20 measurements memory

P4015 Profi Thermometer - Dostmann

P4015 Profi Thermometer, 2-channel, Thermocouple Type-K - Dostmann

Partic­u­larly handy and robust temper­ture instru­ment, for thermo-couple-probes. The high preci­sion is exep­tion­ally in this price segment.

Product features P4015:

• MAX, MIN-Hold-AVG function
• 1-point-CAL-function
• USB-interface
• 20 measurements memory

Thermocouple instrument - TC301 / TC309 - Dostmann

Thermocouple instruments - TC301 and TC309 - Dostmann

A perfectly designed instrument for differential measurements, or when measurement documentation is required.

TC301 - 2-channel thermocouple instrument:

• USB interface
• Large display - 2 measurements simultaneously
• Diplays differential temperature
• RS232-interface

TC309 - 4-channel thermocouple instrument:

• Data logger for 16.000 measurements per channel
• USB interface
• Large display - 4 measurements simultaneously
• Data logger configuration via software or keyboard
