APAQ-3HPT - Inor

Analog adjustable 3-wire transmitter - Inor

APAQ-3HPT is a multirange 3-wire temperature transmitter with Pt100 or Pt1000 input and 0-10 V output. Main applications are in the HVAC sector, where the control systems often require 0-10 V input signals.
APAQ-3HPT is designed for high reliability and good industrial performance.
The “low profile” housing is extremely durable and facilitates easy connections and adjustments.

• 0-10 V output
• Rangeable with solder pads and potentiometers
• Temperature linear output
• Selectable sensor break function
• Short-circuit protected output
• Polarity protected power supply
• Easy wiring, large center hole
• Moulded electronics for high protection

APAQ-3LPT - Inor

Analog adjustable 3-wire transmitters - Inor


APAQ-3LPT is a multirange 3-wire temperature transmitter with Pt100 or Pt1000 input and 0-10 V output.
Main applications are in the HVAC sector, where the control systems often require 0-10 V input signals.
APAQ-3LPT is designed for high reliability and good industrial performance.

• 0-10 V output
• Rangeable with solder pads and potentiometers
• Temperature linear output
• Selectable sensor break function
• Short-circuit protected output
• Polarity protected power supply

APAQ-H - Inor

Analog adjustable 2-wire transmitters - Inor


APAQ-H is a family of multirange 2-wire temperature transmitters for Pt100 or Thermocouple input. Designed for highest reliability and excellent industrial performance. The ”low profile” housing is extremely durable and facilitates easy connections and adjustments.

• Rangeable with solderpads and potentiometers
• Temperature linear output for Pt100 (APAQ-HRF/-HRFX)
• mV linear output for T/C (APAQ-HCF/-HCFX)
• Consistent sensor break function
• Easy wiring, large center hole
• Moulded electronics for high protection

APAQ-L - Inor

Analog adjustable 2-wire transmitters - Inor


APAQ-LR is a multirange 2-wire temperature transmitter for Pt100 input.
APAQ-LC is adjustable for 5 different thermocouple types. APAQ-LR/-LC are designed for highest reliability and excellent industrial performance.

• Rangeable with solderpads and potentiometers
• Temperature linear output for Pt100 (APAQ-LR)
• mV linear output for thermocouples (APAQ-LC)
• Consistent sensor break function

DA576 - Inor

Precision transmitter for absolute and differential temperature measurement - Inor


DA576 is designed for input signal from one or two Pt100 sensors in 4-wire connection and output in mA or V. Thanks to a unique design DA576 provides an outstanding accuracy of ±0.03 °C (±0.05 °F) in both absolute and differential temperature measurement.
DA576 can be calibrated for measurement spans down to 5 °C (9 °F), e.g. -2.5 to +2.5 °C. Each unit is delivered with a calibration certificate. The ideal transmitter for measurement of power/energy in hot water systems and efficiency in cooling systems.

• 1xPt100 (α=0.00385) input in 4-wire connection for absolute temperature
• 2xPt100 (α=0.00385) input in 4-wire connection for temperature difference
• Very small measuring spans for increased resolution
• Different output alternatives: 0-20 mA, 4-20 mA, 0-10 V
• True 4-wire sensor connection eliminates any influence of lead resistances and imbalance
• Plug-in terminals simplifies connection and disconnection
• DIN-rail mounting
• Each unit is delivered with a 4-point calibration protocol

DB537 - Inor

Analog 2-wire transmitter for potentiometer input - Inor


DB537 is designed for input signal from potentiometers and has an adjustable measuring range from 100 Ω up to 100 kΩ. The unit has a very short response time, which makes it ideal for valve and actuator feed-back.

DB537 provides an output signal, 4-20 mA, that is easily matched to the end positions of a valve or an actuator.

• Potentiometer input in 3-wire connection
• Adjustable for measuring ranges from 100 Ω to 100 kΩ
• 4-20 mA output
• Ideal for valve and actuator feed-back due to short response time (~100 ms)
• Front potentiometers for matching the output signal to the working range of the valve or actuator
• Test output connection without breaking the loop
• Plug-in terminals simplifies connection and disconnection
• DIN-rail mounting

IsoPAQ-632 - Inor

Signal splitter/repeater with double outputs for mA and V signals - Inor


The Signal Splitter/Repeater IsoPAQ-632 is used for isolation, conversion and distribution of 0/4 … 20 mA, 0/1 … 5 V and 0/2 … 10 V standard signals. The measuring input can also supply the loop power for 2-wire transmitters.

The input and two isolated outputs can be easily configured by using DIP switch. Due to the calibrated range selection no further adjustment is necessary.

The auxiliary power can be supplied via the connection terminals or via the optional In-Rail-Bus connector. A green LED on the front of the unit has been provided to monitor the power supply.

IsoPAQ-Connect - Inor

In-Rail-Bus power terminal - Inor


The 6.2 mm wide IsoPAQ-Connect power terminal is used for supplying the In-Rail-Bus DIN rail connector with supply voltage. Two separate and reverse polarity protected voltage inputs allow a redundant voltage supply of 24 V DC and a maximum current of 3 A (recommended fuse: 3,5 A, Slowblow).

The status of the power supply of both voltage inputs will be displayed each by a LED on front. A green LED lights up when there is supply voltage on the voltage input. A red LED indicates reversed polarity.

IPAQ C330 - Inor

Universal 2-wire transmitter with wireless communication

IPAQ C330 is a modern temperature transmitter developed to meet the highest requirements on flexibility, accuracy and reliability. A universal transmitter compatible with RTD, thermocouples, voltage and potentiometer sensors to offer high flexibility and reduce the number of installed product variants. IPAQ C330 is available with ATEX, IECEx and cFMus certifications, making it a safe choice for a wide range of applications.

IPAQ C330 supports wireless communication via NFC® (Near- field communication) and Bluetooth® which makes it possible to configure and monitor the transmitter through a smartphone or a tablet.

IPAQ-21 - Inor

Universal 1-channel programmable 2-wire transmitters - Inor


IPAQ-21LX is a 1-channel, universal, isolated 2-wire transmitter for Ex-applications.
No zener barriers or Ex power supplies are needed, which reduces costs for purchase, design and maintenance.
IPAQ-21L is a 1-channel version for non-Ex-applications.

• Very cost effective Ex-solution
• Fully universal, linearized and isolated
• Accepts RTD, T/C, mV and Ω
• Sensor error and system (sensor/transmitter) error correction for highest total accuracy
• Full access to all features while in operation
• NAMUR compliant
• Consistent sensor break function
• Simplified loop check-up with calibration output
• IPRO, easy-to-use Windows configuration software
• Fixed terminals or plug-in terminals with coding

IPAQ-22 - Inor

Universal 2-channels programmable 2-wire transmitter - Inor


IPAQ-22LX is a 2-channels, universal, isolated 2-wire transmitter for Ex-applications.
No zener barriers or Ex power supplies are needed, which reduces costs for purchase, design and maintenance.
IPAQ-22L is a 2-channels versions for non-Ex-applications.

• Very cost effective Ex-solution
• Fully universal, linearized and isolated
• Accepts RTD, T/C, mV and Ω
• Sensor error and system (sensor/transmitter) error correction for
• highest total accuracy
• Full access to all features while in operation
• NAMUR compliant
• Consistent sensor break function
• Simplified loop check-up with calibration output
• IPRO, easy-to-use Windows configuration software
• Only 11 mm/channel
• Fixed terminals or plug-in terminals with coding

IPAQ-4L - Inor

Universal high-Isolation 4-wire transmitter - Inor


IPAQ-4L is a fully universal and programmable 4-wire (separately powered) transmitter. The high isolation provides safe and problem free measurements. Offering both current and voltage output, IPAQ-4L meets any process requirements. Designed for wall and DIN-rail mounting.

• High level isolation – 4000 VAC
• Fully universal and linearized
• Accepts RTD, T/C, mV, V, mA and Ω
• Current and voltage output
• Sensor and system error correction
• Full access to all features while in operation
• NAMUR compliant
• Consistent sensor break function
• Simplified loop check-up with calibration output
• Low sensor isolation detection
• IPRO, easy-to-use Windows configuration software

IPAQ C202 - Inor

Programmable 2-wire transmitter dedicated for Pt100 sensors - Inor


IPAQ C202 is a digital, easy-to-use temperature transmitter developed specifically for measurements with Pt100 sensors.
Its robust design and high quality gives excellent performance and accuracy also under harsh conditions. With the new runtime counter function you can easily supervise the elapsed operational time between calibrations.

The IPAQ C202 is also available with ATEX and IECEx certificates making it suitable for a wide range of applications.

• Robust terminals with test connections
• Input: Pt100 in 3-wire connection
• PC configurable measuring ranges without need for calibration
• Floating zero with minimum span 20°C
• Temperature linear output
• Runtime counter
• Excellent EMC immunity
• Configuration without external power
• Easy-to-use Windows configuration software
• USB communication
• Withstands vibrations up to 10 g
• Only 18.5 mm / 0.72 inch high

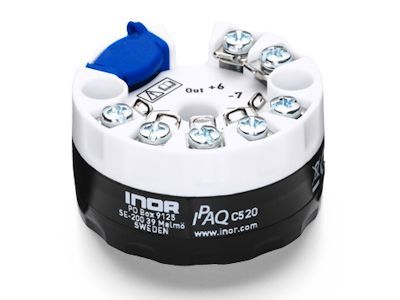

IPAQ C520 - Inor

HART compatible universal dual-input 2-wire transmitters - Inor


The IPAQ C520 transmitters are universal, isolated, dual-input temperature transmitters with additional voltage and resistance input. The IPAQ C520N is approved for Non-Incendive use in Ex-Zone 2. C520X/C520XS are Intrinsically Safe versions for use in Ex-Zone 0, 1 and 2.
The transmitters are compatible with the HART 6 protocol. Typical characteristics are the high accuracy, stability and reliability combined with a robust housing.

• Universal, dual-input for RTD and T/C
• SIL 2 compatible according to IEC 61508-2
• 5 year guaranted stability
• Withstands 10 g vibrations
• Complies with NAMUR NE 21, NE 43, NE 53, NE 89 and NE 107
• EMC immunity according to Criteria A
• Sensor Backup
• Sensor Drift Monitoring
• Sensor Isolation Monitoring
• Sensor matching
• 50 point customized linearization
• Integrated in Emerson AMS and Siemens PDM systems

IPAQ R330 - Inor

Universal 2-wire transmitter with wireless communication

IPAQ R330 is a modern temperature transmitter developed to meet the highest requirements on flexibility, accuracy and reliability. A universal transmitter compatible with RTD, thermocouples, voltage and potentiometer sensors to offer high flexibility and reduce the number of installed product variants. IPAQ R330 is available with ATEX, IECEx and cFMus certifications, making it a safe choice for a wide range of applications.

IPAQ R330 supports wireless communication via NFC® (Near- field communication) and Bluetooth® which makes it possible to configure and monitor the transmitter through a smartphone or a tablet.

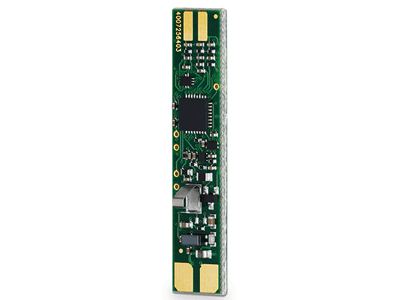

OEM202P - Inor

OEM202P transmitter - Inor

Digital transmitter to be built into own equipment.

• Type: Digital
• Input: RTD
• Output: 4-20 mA
• Isolation: Unisolated
• Measuring channels: 1 channel

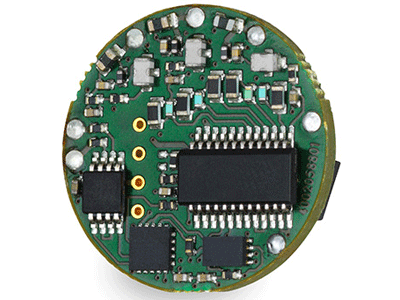

OEM202R - Inor

OEM202R transmitter - Inor

Digital transmitter to be built into own equipment

• Type: Digital
• Input: RTD
• Output: 4-20 mA
• Isolation: Unisolated
• Measuring channels: 1 channel

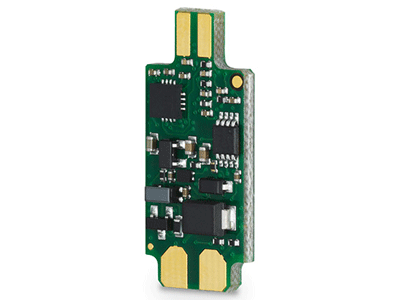

OEM202W - Inor

OEM202W transmitter - Inor

Digital transmitter to be built into own equipment

• Type: Digital
• Input: RTD
• Output: 4-20 mA
• Isolation: Unisolated
• Measuring channels: 1 channel

IPAQ CT20 - Inor

Analog, PC-configurable compact transmitter for demanding applications - Inor


The IPAQ CT20 is an analogue, PC-configurable transmitter for Pt100 sensors. It comes in a robust, IP67 casing with M12 connections in both ends and offers the highest levels of flexibility and reliability.

Easy installation and maintenance
Its compact design and robust casing makes IPAQ CT20 the ideal choice for a wide range of applications, e.g. in OEM/Machine applications or integrated in production and process lines . The M12 connectors allows the IPAQ CT20 to be optimally installed based on environmental conditions, physical space and access for maintenance.

Easy configuration
Configuration is easily done before the installation with the user friendly ConSoft software and it can be configured and installed without stopping the process.

IPAQ-Hplus - Inor

High-precision universal programmable 2-wire transmitter - Inor


IPAQ-Hplus offers outstanding accuracy, stability and high isolation combined with short response time and extended functionality.
It is a universal 2-wire transmitter for high-demand temperature and process measurement applications.
Error corrections and sensor diagnostics improve the measurement accuracy and safety.

• Fully universal, linearized and highly isolated
• Accepts RTD, T/C, mV and Ω
• Extra high accuracy and stability
• Sensor error and system (sensor/transmitter) error correction for
• highest total accuracy
• 40 point linearization – any sensor can be matched
• Configuration without external power
• High speed update (300 ms)
• Selectable output limits
• Low sensor isolation detection
• Full access to all features while in operation
• NAMUR compliant
• Consistent sensor break function
• Simplified loop check-up with calibration output
• IPRO, easy-to-use Windows configuration software

IPAQ-Lplus - Inor

High-precision universal programmable 2-wire transmitter - Inor


IPAQ-Lplus offers outstanding accuracy, stability and high isolation combined with short response time and extended functionality.
It is a universal 2-wire transmitter for high-demand temperature and process measurement applications.
Error corrections and sensor diagnostics improve the measurement accuracy and safety.

• Fully universal, linearized and highly isolated
• Accepts RTD, T/C, mV and Ω
• Extra high accuracy and stability
• Sensor error and system (sensor/transmitter) error correction for highest total accuracy
• 40 point linearization – any sensor can be matched
• Configuration without external power
• High speed update (300 ms)
• Selectable output limits
• Low sensor isolation detection
• Full access to all features while in operation
• NAMUR compliant
• Simplified loop check-up with calibration output
• Test output without breaking the loop
• IPRO, easy-to-use Windows configuration software

IPAQ R202 - Inor

Programmable 2-wire transmitter dedicated for Pt100 sensors - Inor


IPAQ R202 is a digital, easy-to-use temperature transmitter developed specifically for measurements with Pt100 sensors.
Its robust design and high quality gives excellent performance and accuracy also under harsh conditions.

With the new runtime counter function you can easily supervise the elapsed operational time between calibrations.

• Robust terminals
• Input: Pt100 in 3-wire connection
• PC configurable measuring ranges without need for calibration
• Floating zero with minimum span 20°C
• Temperature linear output
• Runtime counter
• Excellent EMC immunity
• Configuration without external power
• Easy-to-use Windows configuration software
• USB communication
• Withstands vibrations up to 10 g

IPAQ R520 - Inor

HART compatible universal dual-input 2-wire transmitters - Inor


The IPAQ R520 transmitters are universal, isolated, dual-input temperature transmitters with additional voltage and resistance input. The R520N is approved for Non-Incendive use in Ex-Zone 2. R520X/R520XS are Intrinsically Safe versions for use in Ex-Zone 1 and 2. The transmitters are compatible with the HART 6 protocol. Typical characteristics are the high accuracy, stability and reliability combined with a robust housing.

• Universal, dual-input for RTD and T/C
• SIL 2 compatible according to IEC 61508-2
• 5 year guaranted stability
• Withstands 10 g vibrations
• Complies with NAMUR NE 21, NE 43, NE 53, NE 89 and NE 107
• EMC immunity according to Criteria A
• Sensor Backup
• Sensor Drift Monitoring
• Sensor Isolation Monitoring
• Sensor Matching
• 50 point customized linearization
• Integrated in Emerson AMS and Siemens PDM systems

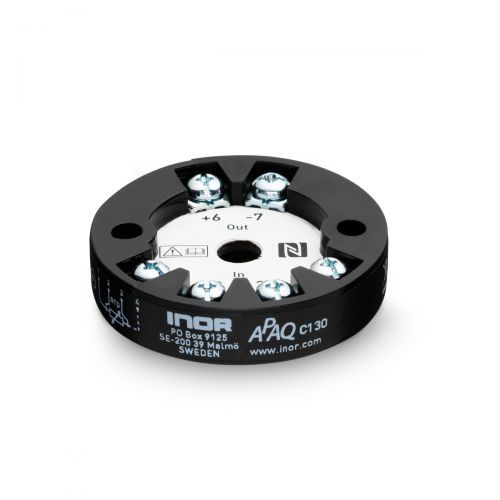

APAQ C130 RTD - Inor

Digital 2-wire transmitter - Inor

The APAQ C130 is a digital 2-wire transmitter for Pt100 and Pt1000. A modern transmitter with high reliability and good performance thanks to its robust design.

• Easy wireless configuration via NFC with samtphone or tablet
• External influences have minimal influence on the measurement result

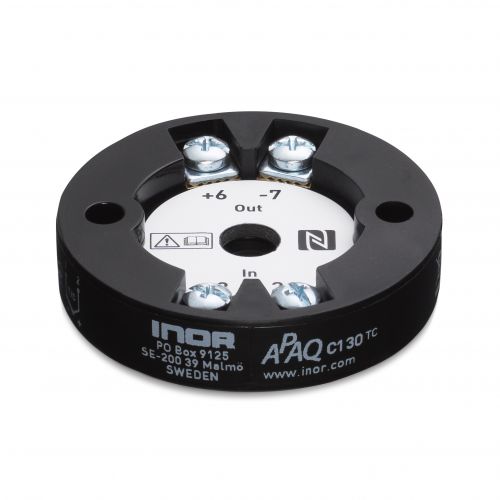

APAQ C130 TC - Inor

Digital 2-wire transmitter for thermocouples - Inor

The APAC C130 TC is characterised by simplicity. A modern transmitter with high reliability and good performance.

• The transmitters can be easily configured wirelessly via NFCTM with spartphone or tablet
• External influences have minimal impact on the measurement result

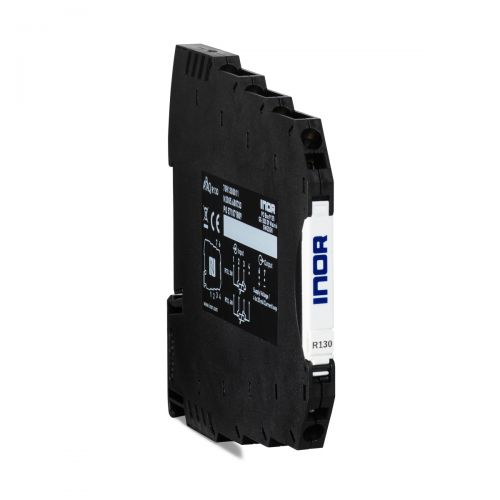

APAQ R130 RTD - Inor

Digital 2-wire transmitter for Pt100 and Pt1000

A modern transmitter with high reliability and good performance.

• Easy wireless configuration via NFC with smartphone or tablet
• External influences have minimal impact on the measurement result

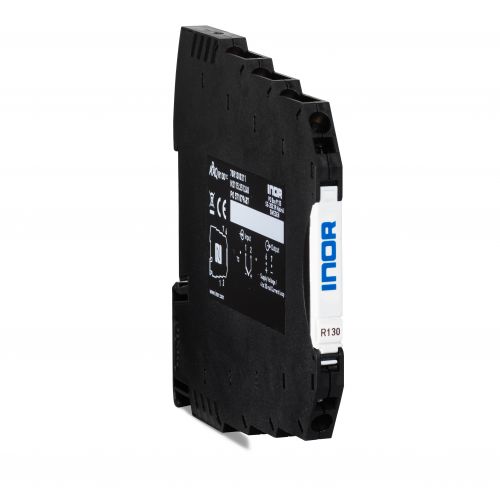

APAQ R130 TC - Inor

Digital 2-wire thermocouple transmitter with wireless communication

• The APAQ R130 TC is a modern transmitter with high reliability and good presentations
• Transmitters can easily configure wirelessly via NFCTM with smartphone or tablet

MinIPAQ-HLP - Inor

Basic programmable 2-wire transmitter - Inor


MinIPAQ-HLP is a basic, programmable non-isolated, easy-to-use 2-wire transmitter. The Low Profile housing has a hight of only 18.5 mm / 0.72 inch. Configuration is made in seconds with the user friendly Windows software, MINIPAQ Soft. No external power supply required for configuration. The transmitter is programmable for RTD’s in 3- and 4-wire connection according to different standards as well as for 11 T/C types.
Useful error correction functions improve the accuracy.

• Robust terminals with test connections
• Only 18.5 mm / 0.72 inch high
• Accepts RTD in 3- and 4-wire connection and 11 T/C type
• Temperature linear output
• Sensor error and system (sensor/transmitter) error correction for
• highest total accuracy
• Configuration without external power
• Easy-to-use Windows configuration software
• NAMUR compliant
• Rugged design tested for 10 g vibrations
• USB communication

MinIPAQ-L - Inor

Basic programmable 2-wire transmitter - Inor


MinIPAQ-L is a basic, programmable non-isolated, easy-to-use 2-wire transmitter. Configuration is made in seconds with the user friendly Windows software. No external power supply required for configuration.

MinIPAQ-L is programmable for RTD’s in 3- and 4-wire connection according to different standards as well as for 11 T/C types.
Useful error correction functions improve the accuracy.

• Accepts RTD in 3- and 4-wire connection and 11 T/C types
• Temperature linear output
• Sensor error and system (sensor/transmitter) error correction for
• highest total accuracy
• Configuration without external power
• Easy-to-use Windows configuration software
• NAMUR compliant
• Test output without breaking the loop
• USB communication
• Withstands vibrations up to 10 g

DA561 - Inor

Isolation transmitter for mA/V signals with 2-wire transmitter supply - Inor


DA561 is specially designed for signal isolation and load amplification in the process industry.
A 2-wire transmitter can be connected to and supplied from the isolation amplifier. DA561 maintains a high isolation level (1,5 kV) between input and output. Current and voltage can be chosen independently as input and output signals.

• Current and voltage input
• Current and voltage output
• Direct connection of 2-wire transmitter
• Output test terminals
• 1 500 V isolation level
• Short response time
• High noise immunity
• Available for AC or DC power supply
• DIN-rail mounting
• Plug-in screw terminals

DA562 - Inor

Dual Channel Isolation Transmitter for mA/V Signals - Inor


DA562 is specially designed for signal isolation and load amplification in the process industry. Two independent and galvanically isolated channels allow for high-density mounting.
DA562 maintains a high isolation level (1,5 kV) between input, output and the two channels. Current and voltage can be chosen independently as input and output signals.

• Two fully independent isolated channels
• Current and voltage input
• Current and voltage output
• Output test terminals
• 1 500 V isolation level
• Short response time
• High noise immunity
• Available for AC or DC power supply
• DIN-rail mounting
• Plug-in screw terminals

IsoPAQ-11L - Inor

1-channel loop powered isolator for separation of 0(4)-20 mA signals - Inor


IsoPAQ-11L is 1-channel loop powered isolator used for electrical isolation of 0(4)-20 mA signals to avoid measurement errors due to different voltage potentials or ground loops in an instrument installation.

The isolator does not need any power supply, which contributes to reduced installation costs compared to isolation transmitters. The high reliability ensures a safe system operation and low maintenance costs.

• Input to output galvanic isolation
• No power supply required
• Low voltage drop
• High accuracy
• High-density DIN-rail mounting
• Plug-in screw terminals

IsoPAQ-12L - Inor

2-channel loop powered isolator for separation of 0(4)-20 mA signals - Inor


IsoPAQ-12L is a 2-channel loop powered isolator used for electrical isolation of 0(4)-20 mA signals to avoid measurement errors due to different voltage potentials or ground loops in an instrument installation.

IsoPAQ-12L offers a very cost effective alternative combined with a high-density mounting.

The isolator does not need any power supply, which contributes to reduced installation costs compared to isolation transmitters. The high reliability ensures a safe system operation and low maintenance costs.

• Input to output galvanic isolation
• No power supply required
• Low voltage drop
• High accuracy
• High-density DIN-rail mounting
• Plug-in screw terminals

IsoPAQ-21L - Inor

1-channel loop powered isolators for 0(4)-20 mA signals with high isolation and protective separation - Inor


IsoPAQ-21L is a 1-channel loop powered isolator used for electrical isolation of 0(4)-20 mA signals to avoid measurement errors due to different voltage potentials or ground loops in an instrument installation.

The isolator needs no power supply, which contributes to reduced installation costs compared to isolation transmitters. The high isolation level of 4 kV provides an effective protection for downstream devices.

The high reliability and the Protective Separation are additional features that ensure a safe system operation.

• Input to output galvanic isolation
• No power supply required
• Low voltage drop
• Protective Separation acc. to EN 61140
• High accuracy
• High-density DIN-rail mounting
• Plug-in screw terminals

IsoPAQ-22L - Inor

2-channel loop powered isolators for 0(4)-20 mA signals with high isolation and protective separation - Inor


IsoPAQ-22L is a 2-channel loop powered isolator used for electrical isolation of 0(4)-20 mA signals to avoid measurement errors due to different voltage potentials or ground loops in an instrument installation.

The isolator need no power supply, which contributes to reduced installation costs compared to isolation transmitters. The high isolation level of 4 kV provides an effective protection for downstream devices.

IsoPAQ-22L offers a very cost effective alternative combined with a high-density mounting. The high reliability and the Protective Separation are additional features that ensure a safe system operation.

• Input to output galvanic isolation
• No power supply required
• Low voltage drop
• Protective Separation acc. to EN 61140
• High accuracy
• High-density DIN-rail mounting
• Plug-in screw terminals

IsoPAQ-30P - Inor

Basic isolation transmitter for unipolar mA/V signals with calibrated range selection - Inor


The Isolation Transmitter IsoPAQ-30P is a low-cost transmitter used for basic isolation and conversion of 0-20 mA, 4-20 mA and 0-10 V unipolar signals.
Due to the calibrated range selection of the input/output signals and the universal power supply, IsoPAQ-30P provides excellent flexibility and low storage and installation costs. The high reliability ensures a safe system operation and low maintenance costs.

• Calibrated range selection
• Universal power supply for 20 to 253 VAC/DC
• 3-port isolation
• High-density DIN-rail mounting
• Plug-in screw terminals
• Excellent reliability

IsoPAQ-40P - Inor

High-performance isolation transmitter for unipolar mA/V signals with calibrated range selection - Inor


The Isolation Transmitter IsoPAQ-40P is used for high-precision isolation and conversion of 0-20 mA, 4-20 mA and 0-10 V unipolar signals.
Due to the calibrated range selection of the input/output signals, the selectable bandwidth and the universal power supply, IsoPAQ-40P provides excellent flexibility and low storage and installation costs.
The high reliability and the Protective Separation are additional features that ensure a safe system operation.

• Calibrated range selection
• Protective Separation acc. to EN 61140
• High accuracy
• Universal power supply for 20 to 253 VAC/DC
• 3-port isolation
• High-density DIN-rail mounting
• Plug-in screw terminals
• Excellent reliability

IsoPAQ-41P - Inor

High-performance isolation transmitter for unipolar mA/V signals with fixed ranges - Inor


The Isolation Transmitter IsoPAQ-41P is used for high-precision isolation and conversion of 0-20 mA, 4-20 mA and 0-10 V unipolar signals.
For applications where normally only one signal combination is used, IsoPAQ-41P offers a cost-effective alternative.
The high reliability and the Protective Separation are additional features that ensure a safe system operation.

• Fixed ranges
• Protective Separation acc. to EN 61140
• High accuracy
• Universal power supply for 20 to 253 VAC/DC
• 3-port isolation
• High-density DIN-rail mounting
• Plug-in screw terminals
• Excellent reliability

IsoPAQ-51P - Inor

High-performance isolation transmitter for unipolar mA signals with fixed range and zero/span adjustment - Inor


The Isolation Transmitter IsoPAQ-51P is used for high-precision isolation of 0(4)-20 mA unipolar signals. For applications where normally only one signal combination is used, IsoPAQ-51P offers a cost-effective alternative.
The zero and span adjustments allow for a fine-tuning of the measurement loop. The high reliability and the Protective Separation are additional features that ensure a safe system operation.

• Fixed ranges
• Zero/Span Adjustment
• Protective Separation acc. to EN 61140
• High accuracy
• Universal power supply for 20 to 253 VAC/DC
• 3-port isolation
• High-density DIN-rail mounting
• Plug-in screw terminals
• Excellent reliability

IsoPAQ-60P - Inor

High-performance isolation transmitter for bipolar and unipolar mA/V signals with extensive range selection and zero/span adjustment - Inor


The Isolation Transmitter IsoPAQ-60P is used for highprecision isolation and conversion of 0-20 mA, 4-20 mA and 0-10 V bipolar and unipolar signals.
Due to the extensive range selection with a choice of 144 input/output signal combinations, the selectable bandwidth and the universal power supply, IsoPAQ-60P is a true universal transmitter for any demanding isolation application.
The zero and span adjustments allow for a fine-tuning of the measurement loop. The high reliability and the Protective Separation are additional features that ensure a safe system operation.

• Extensive range selection
• Zero/Span Adjustment
• Extremely fast response
• Protective Separation acc. to EN 61140
• High accuracy
• Universal power supply for 20 to 253 VAC/DC
• 3-port isolation
• High-density DIN-rail mounting
• Plug-in screw terminals
• Excellent reliability

IsoPAQ-70S - Inor

Basic isolation transmitter for unipolar shunt voltages with calibrated range selection - Inor


The Isolation Transmitter IsoPAQ-70S is used for isolation and conversion of unipolar shunt voltages into standard mA/V signal. Due to the calibrated range selection and the universal power supply, IsoPAQ-70S provides excellent flexibility and low storage and installation costs.
The high reliability ensures a safe system operation and low maintenance costs.

• Calibrated range selection
• Universal power supply for 20 to 253 VAC/DC
• 3-port isolation
• High-density DIN-rail mounting
• Plug-in screw terminals
• Excellent reliability

IsoPAQ-80S - Inor

High-performance isolation transmitter for bipolar and unipolar shunt voltages with extensive range selection and zero/span adjustment - Inor


The Isolation Transmitter IsoPAQ-80S is used for high-precision isolation and conversion of bipolar and unipolar shunt voltages into standard mA/V signals.
Due to the extensive range selection, the selectable bandwidth and the universal power supply, IsoPAQ-80S is a true universal transmitter for any demanding shunt voltage isolation application.
The zero and span adjustments allow for a fine-tuning of the measurement loop.
The high reliability and the Protective Separation are additional features that ensure a safe system operation.

• Extensive range selection
• Zero/Span Adjustment
• Extremely fast response
• Protective Separation acc. to EN 61140
• High accuracy
• Universal power supply for 20 to 253 VAC/DC
• 3-port isolation
• High-density DIN-rail mounting
• Plug-in screw terminals
• Excellent reliability

IsoPAQ-110L - Inor

1- & 2-channel loop powered isolators for 0(4)-20 mA signals - Inor


IsoPAQ-110L is a loop powered isolator, available in 1- and 2-channel versions. It is used for electrical isolation of 0(4)-20 mA signals to avoid measurement errors due to different voltage potentials or ground loops in an instrument installation.

The 2-channel version, IsoPAQ-110L offers a very cost effective alternative combined with a high-density mounting. The isolator need no power supply, which contributes to reduced installation costs compared to Isolation Transmitters.

The high reliability ensures a safe system operation and low maintenance costs.

• Input to output galvanic isolation
• 1- and 2-channel versions
• No power supply required
• Fixed ranges
• Protective Separation acc. to EN 61140
• Compact DIN-rail mounting

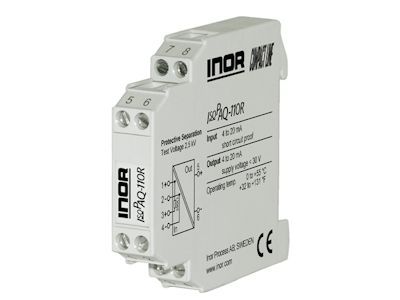

IsoPAQ-110R - Inor

Transmitter repeater for powering and isolation of 2-wire transmitters - Inor


IsoPAQ-110R is a Transmitter Repeater for powering and isolation of a non-isolated 2-wire transmitter.
Thanks to the isolation, the 4-20 mA transmitter signal can be connected to a grounded input circuit of a control system without risk for measurement errors due to ground loops.
The Transmitter Repeater needs no power supply, which contributes to reduced installation costs.
The high reliability ensures a safe system operation and low maintenance costs.

• Transmitter isolation
• Transmitter powering
• High accuracy
• HART communication
• Fixed ranges
• Protective Separation acc. to EN 61140
• Compact DIN-rail mounting

IsoPAQ-131P - Inor

Isolation transmitter for unipolar mA/V signals with fixed ranges - Inor


The Isolation Transmitter IsoPAQ-131P is used for isolation and conversion of 0-20 mA, 4-20 mA and 0-10 V unipolar signals.
For applications where normally one signal combination only is used, IsoPAQ-131P offers a cost-effective alternative.
The high reliability and the Protective Separation are further features, which ensure a safe system operation.

• 3-port isolation
• Fixed ranges
• Universal power supply for 24 VAC/DC
• Protective Separation acc. to EN 61140
• Compact DIN-rail mounting
• Excellent reliability

IsoPAQ-161P - Inor

Isolation transmitter for bipolar and unipolar mA/V signals with fixed ranges - Inor


The Isolation Transmitter IsoPAQ-161P is mainly used for isolation of bipolar signals, such as ±20 mA, ±10 mA, ±10 V, ±5 V, and conversion into unipolar output signals.
For applications where normally one signal combination only is used, IsoPAQ-161P offers a cost-effective alternative. The high reliability and the Protective Separation are further features, which ensure a safe system operation.

• 3-port isolation
• Bipolar input signals
• Fixed ranges
• Universal power supply for 24 VAC/DC
• Protective Separation acc. to EN 61140
• Compact DIN-rail mounting
• Excellent reliability

IsoPAQ-610 - Inor

Transmitter repeater for powering and isolation of 2-,3- and 4-wire transmitters - Inor


The Repeater Power Supply IsoPAQ-610 is used to supply and separate 2- and 3-wire SMART Transmitters and active sensor signals with HART communication.

It supplies the transmitter with power and transmits the measuring signal with high accuracy galvanic isolated to the output. Alternative the measuring input accepts active 0/4 … 20 mA signals from 4-wire transmitters.

In addition to the analog signal, the IsoPAQ-610 also transmits data protocols for HART communication. It allows bidirectional communication with the field device from every point of the cabling.

The auxiliary power can be supplied via the connection terminals or via the optional In-Rail-Bus connector. A green LED on the front of the unit has been provided to monitor the power supply.

IsoPAQ-611 - Inor

1-channel loop powered isolator for separation of 0(4)-20 mA signals - Inor


The input loop-powered isolator IsoPAQ-611 provides galvanic separation for 0(4) … 20 mA standard signals, while transferring the measurement signal to the output with a high degree of accuracy.

The unit avoids interference voltage carry-over and effectively suppressing parasitic noise. The very low drop voltage of 2.3 V and the high level of accuracy work together to make the IsoPAQ-611 the first choice in system design.

Intelligent design and their consequential avoidance of highly integrated components result in extremely long service lives and reliability – without any falsification of the measurement signal.

The IsoPAQ-611 requires no additional power supply since the auxiliary power is obtained from the input signal without distorting it. This not only saves costs during installation, but also increases reliability.

IsoPAQ-612 - Inor

2-channel loop powered isolator for separation of 0(4)-20 mA signals - Inor


The input loop-powered isolator IsoPAQ-612 provides galvanic separation for 0(4) … 20 mA standard signals, while transferring the measurement signal to the output with a high degree of accuracy.

The unit avoids interference voltage carry-over and effectively suppressing parasitic noise. The very low drop voltage of 2.3 V and the high level of accuracy work together to make the IsoPAQ-612 the first choice in system design.

Intelligent design and their consequential avoidance of highly integrated components result in extremely long service lives and reliability – without any falsification of the measurement signal.

The IsoPAQ-612 requires no additional power supply since the auxiliary power is obtained from the input signal without distorting it. This not only saves costs during installation, but also increases reliability.

IsoPAQ-641 - Inor

High-performance isolation transmitter for mA/V Signals with calibrated range selection - Inor


The Isolation Amplifier IsoPAQ-641 is used for isolation and conversion of 0/4 … 20 mA and 0/2 … 10 V standard signals.

The input and output range of IsoPAQ-641 can be easily set by using DIP switch. Due to the calibrated range selection no further adjustment is necessary. Also the cut-off frequency can be adapted to the measurement task by using the DIP Switch.

The auxiliary power can be supplied via the connection terminals or via the optional In-Rail-Bus connector. A green LED on the front of the unit has been provided to monitor the power supply.

IsoPAQ-661 - Inor

Isolation transmitter for bipolar and unipolar mA/V signals with calibrated range selection - Inor


The Bipolar Isolation Amplifier IsoPAQ-661 is used for isolation and conversion of bipolar and unipolar industrial standard signals.

The input and output range of IsoPAQ-661 can be easily set by using DIP switch. Due to the calibrated range selection no further adjustment is necessary.

A switchable compensation of the measuring range can be performed at the Zero/Span potentiometers on the front panel. Also the cut-off frequency can be adapted to the measurement task by using the DIP Switch.

The auxiliary power can be supplied via the connection terminals or via the optional In-Rail-Bus connector. A green LED on the front of the unit has been provided to monitor the power supply.

IPAQ C530 - Inor

Universal HART-compatible 2-wire transmitter with wireless communication - Inor

IPAQ C530 is a modern, HART® temperature transmitter developed to meet the highest standards of accuracy and reliability. A universal transmitter compatible with RTD, thermocouples, voltage and potentiometer sensors, offering high flexibility and reduces the number of installed product variants.

It is fully compatible with HART® 7 and offers extended diagnostic information (for example device error, sensor and wiring conditions) making it reliable and highly precise.

IPAQ C530 supports communication via NFC® (Near-field communication) and Bluetooth® which makes it possible to configure and monitor the transmitter remotely.

IPAQ R530 - Inor

Universal HART-compatible 2-wire transmitter with wireless communication - Inor

IPAQ R530 is a modern, HART® temperature transmitter developed to meet the highest standards of accuracy and reliability. A universal transmitter compatible with RTD, thermocouples, voltage and potentiometer sensors, offering high flexibility and reduces the number of installed product variants.

It is fully compatible with HART® 7 and offers extended diagnostic information (for example device error, sensor and wiring conditions) making it reliable and highly precise.

IPAQ R530 supports communication via NFC® (Near-field communication) and Bluetooth® which makes it possible to configure and monitor the transmitter remotely.

Also see:
Inor Connect
ICON BT

Inor Connect

Wireless communication with INOR Connect

With the intuitive and easy-to-use interface in the app, the work becomes a pleasure. INOR Connect offers the same great configuration capabilities as the ConSoft software but with an even more user-friendly interface.

In addition to the user-friendly interface, INOR Connect also offers automatic updates. This means that you will always have the latest features available.

We have also added quick links to each product page if you need extra information about the transmitter. INOR Connect is available for Android and will also be available for iOS*1 in the near future.

ICON BT - Inor

Configuration kit for remote configuration and monitoring via Bluetooth® - Inor

ICON-BT is a Bluetooth® modem for wireless communication between smartphones/tablets and INOR temperature transmitters. Together with the app INOR Connect, you can configure and monitor the transmitter while it is still mounted in the process. Simply plug in your ICON-BT to the USB connector on the transmitter and connect with your portable device. Thanks to the extended range that Bluetooth offers you can communicate with the transmitter remotely.

Great tool for service and maintenance
ICON-BT is a great tool for people working with service and maintenance as it provides a quick health check of your process. The live monitoring and diagnostics in the INOR Connect app makes it possible to follow the process temperature in real time.

Optimised for work on the field
Thanks to the small form factor of ICON-BT you can monitor and configure your transmitter even in the tightest mounting locations. The USB cable makes it easy to connect ICON-BT to the temperature transmitter and works perfect in cabinets where the transmitters are mounted close to each other.

The ICON-BT kit consists of:

• ICON-BT
• USB-Cable
• Batteries
• User instruction
• Quick guide
