Walk-in climatic chamber

  • Walk-in-climatic-chamber-1.gif
  • Walk-in-climatic-chamber-2.gif
  • Walk-in-climatic-chamber-3.gif
  • Walk-in-climatic-chamber-1.gif
  • Walk-in-climatic-chamber-2.gif
  • Walk-in-climatic-chamber-3.gif

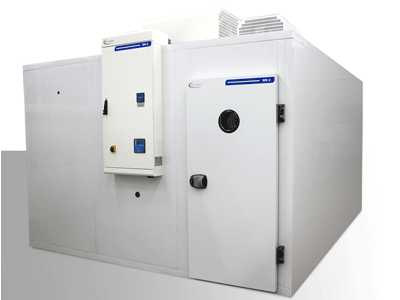

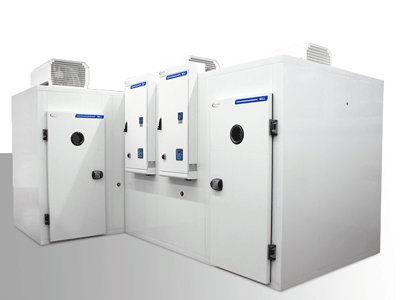

Walk-in climatic chamber - Kambic

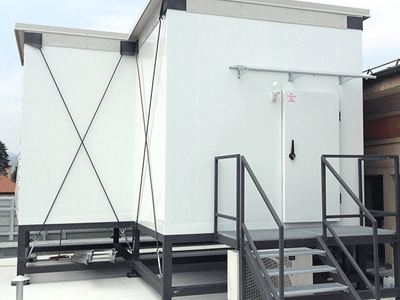

The Kambic walk-in climatic chambers are available in various design solutions. The chamber can be set up as an open room installation or separately outside of the building. It can also be incorporated in a cleanroom or in a ship container.

The main features are:

  • Temperature and relative humidity controlled test environment
  • Material temperature & Rh resistance and product testing
  • Maintaining superior temperature & Rh stability
  • Sample conditioning prior to other tests
  • Accelerated ageing
  • Stress tests

Main features

  • External dimensions (WxHxD) in mm: According to user preferences
  • Temperature range (°C) (lights on or off): -40...+90
  • Rh range (%): 40...95
  • Temperature & Rh display resolution: 0.1°C / 1%
  • Temperature set resolution (°C): 0.1
  • Rh set resolution (%): 1
  • Temperature stability (°C): Better than ±0,3
  • Temperature uniformity (°C): < ± 1 @ +37°C
  • Rh Stability (%) (lights off): Better than ±3
  • Temperature Control: PID
  • Cooling: Air cooled compressor aggregate (water cooled as an option)
  • Relative humidity: Steam generator / Ultrasonic humidifier / DEW point
  • Power supply: 3x400 V 50/60 Hz (± 10%)
  • Access ports (mm): Ø 40 standard (Ø 50, Ø 90 as an accessory)
  • Interface: RS 232 (USB or Ethernet as an optional)
  • Kambic
