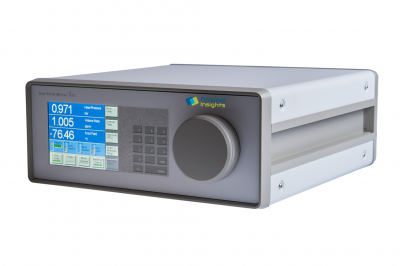

The Model 973 Dew Point Mirror is a portable Instrument equipped with an integral measuring head for both spot and continuous measurement of frost/dew point and temperature in air and gas. Based on the chilled mirror principle, the 973 provides fundamental, drift free and precise humidity measurement. The 973 has no need for either humidity sensor replacement or calibration adjustment. Unlike sensor-based systems, routine maintenance is conveniently limited to occasional mirror cleaning. Users can self-check instrument calibration stability using the integrated Ice-Test function.

Features:

Fundamental drift free humidity measurement
Integral frost/dew point measuring head
Internal sample pump
Optimal Response Injection System for fast measurement
Pressures up to 20 bar
Intuitive, easy to use LCD touch screen user interface

Main features

973S:

High Specification 973
The original 973 with integrated sample pump, external temperature measurement and transport case.

973CA:

Compressed air specific 973
20 bar inlet pressure, quick coupling sample tubes and compressed air Fittings

973E:

Economic Version of the 973
No pump and no external temperature measurement, but at a lower price point and the usual MBW accuracy and stability.

Key Specifications:

Min./Max. frost/dew point range: -60 to +20 ̊C
Calibrated frost/dew point range: -50 to +20 ̊C
Temperature: -50 to +100 ̊C
MBW Calibration

Typical Applications:

On-site calibration of dew point sensors
Checking breathing gas quality
Battery manufacturing
Compressed air systems
Standards laboratories
Validation of production and storage conditions
Dryer performance tests
