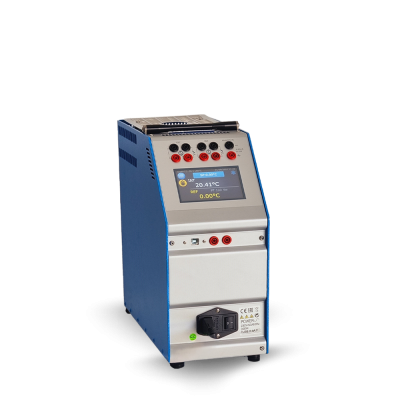

Quartz portable block temperature calibrator - Giussani
The Giussani Quartz temperature calibrator is a compact instrument used to calibrate transducers, RTD and temperature-measuring sensors in the field and in the laboratory. The possibility to generate positive and negative temperature ramps makes it suitable for use in calibrating and testing thermostats.
The Quartz calibrator consists of a metal block measuring 35 mm in diameter and 135 mm in height, it doesn’t use external refrigerating liquids and the metal block is heated and cooled by Peltier elements.
The Quartz is equipped with a PID microprocessor controller with a resolution up to 0,01 °C, setting of the standard of measurement in °C, °F and K, programming of ascent/descent ramps and storage of the thermostats’ operative temperature. In the Quartz-2I version, the instrument is equipped with an acquisition card having two adjustable inputs able to read: Pt100 3/4 wires & thermocouples: E, J, K, N, R, S with automatic compensation of the cold junction.
